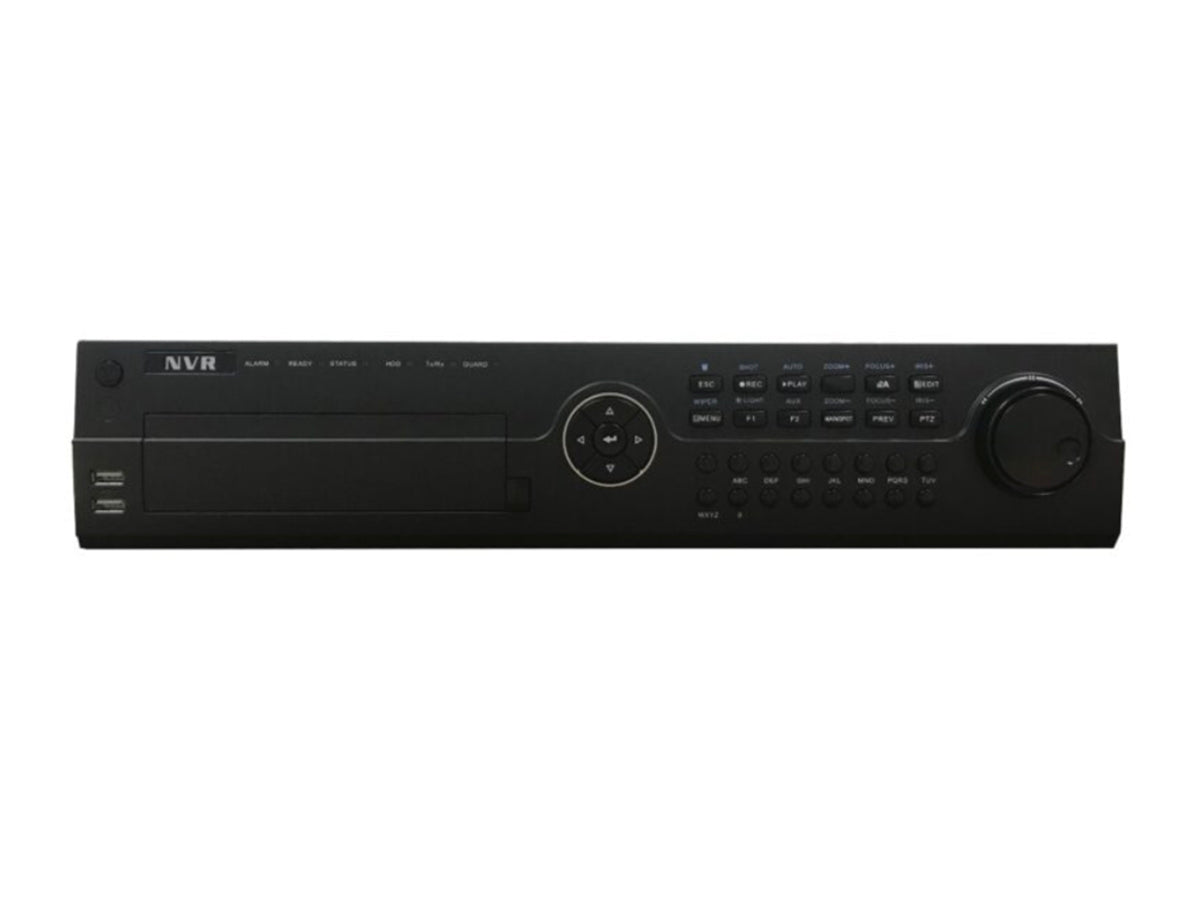

THK-NR520-32 NVR up to 32-ch IP, 30 fps 1080p, 4 SATA, Dual 4K HDMI output, 16-ch synchronous playback

320Mbps (up to 32-ch IP), TLS encryption technology,2ch@32MP (30 fps)/2ch@24MP (30 fps)/4ch@12MP (20 fps)/8ch@8MP(25fps)/16ch@4MP (30 fps)/32ch@1080p (30 fps), 4 SATA , Dual 4K HDMI output, 16-ch synchronous playback
H.265+/H.265/H.264+/H.264

•  H.265+/H.265/H.264+/H.264 video formats

•  Up to 32-ch IP camera inputs

•  Up to 32-ch@1080p decoding capacity

•  Up to 320 Mbps incoming bandwidth

•  H.265+ compression effectively reduces the storage space by up to 75%

•  Dual-stream recording saves bandwidth

•  Adopt stream over TLS encryption technology which provides more secure stream transmission service

•  Support double verification for playback and downloading

•  Provide independent HDMI and VGA outputs

•  HDMI video output at up to 8K resolution

•  Dual 4K HDMI output resolution

•  Up to 4 SATA interfaces for HDD connection

•  16-ch synchronous playback

•  Support multiple VCA (Video Content Analytics) events

•  Configurable special camera smart functions, such as VCA detection

   (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting

•  POS information overlay on live view and playback, and POS triggered recording and alarm

•  2 self-adaptive 10/100/1000 Mbps Ethernet interfaces

•  Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

•  Smooth streaming technology

•  Support web access without plug-in
