Vonnic
DVR-XVR-HAR524-24 XVR, 24 CH 4 in 1 HD-TVI-4MP/ AHD/ 960H/ 8 CH IP (2MP): 1080p Resolution, 960 FPS Display, Recording 720 FPS @ 720p & 960H/ 360FPS @1080p, H.265, 4 CH Audio, HDMI & VGA Out, 16 In 4 Out Alarm, RS-485*2
DVR-XVR-HAR524-24 XVR, 24 CH 4 in 1 HD-TVI-4MP/ AHD/ 960H/ 8 CH IP (2MP): 1080p Resolution, 960 FPS Display, Recording 720 FPS @ 720p & 960H/ 360FPS @1080p, H.265, 4 CH Audio, HDMI & VGA Out, 16 In 4 Out Alarm, RS-485*2
XVR Solution: Hikvision OEM Support 3MP TVI Cameras, 5 in 1: TVI/ AHD/ 960H/ CVI / IP

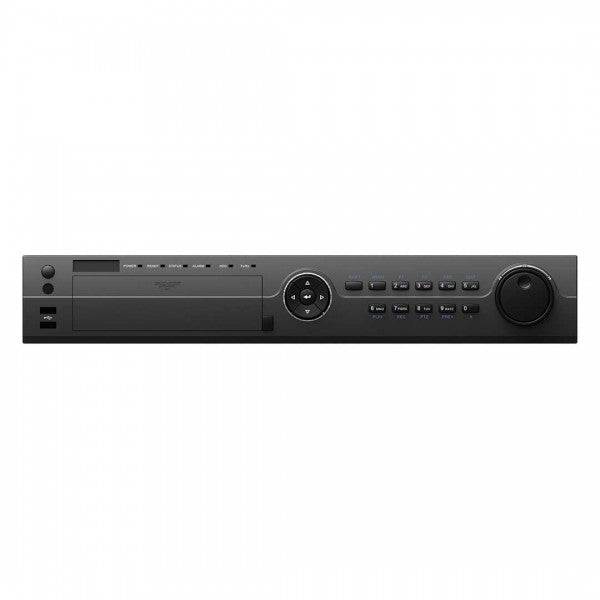

Model: DVR-XVR-HAR524-24
- H.264 & Dual-stream video compression
- Support HD-TVI/analog/IP camera triple hybrid
- Support 8 IP Cameras, up to 2 MP
- Disable TVI in order to add more IP
- Support both HD-TVI and analog cameras with adaptive access
- HDMI and VGA output are up to 1920 × 1080P resolution
- Connectable to the Coaxitron camera/dome with long transmission distance
- Support up to 16 Ch. synchronous playback
| Specifications | ||
|---|---|---|
| Model Number | HAR524-24 | |
| Video compression | H.265 / H.265+ H.264 / H.264+ | |
| HD-TVI/ Analog Video Input | 24 BNC input, 1Vp-p, 75Ω | |
| Supported camera types | 4MP HD-TVI, 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS | |
| Audio compression | G.711u | |
| Audio Input/ Two-way audio in | 4 Ch. input/1 ch two way audio RCA (2.0 Vp-p, 1kΩ) | |
| HDMI / VGA output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Encoding resolution | Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF, Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA | |
| Frame rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
|
| Video bitrate | 32 Kbps to 6 Mbps | |
| Audio output | 1 Ch., RCA (Linear, 1KΩ, for VGA output and CVBS output) | |
| Audio bitrate | 64 Kbps | |
| Dual-stream | Support | |
| Stream type | Video & Audio | |
| Synchronous playback | 16 Ch. | |
| Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | |
| Remote connections | 128 | |
| Type | 4 SATA interfaces for 4 HDDs; 1 eSATA interface | |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
| Capacity | Up to 8 TB capacity for each disk | |
| Network interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
|
| Serial interface | RS-232, RS-485, Keyboard | |
| USB Interface | 3 × USB2.0 | |
| Power | 100 ~ 240VAC, 47 ~ 63HZ, Max. 55W | |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) | |
| Working humidity | 10% ~ 90% | |
| Chassis | 19-inch rack-mounted 1.5U chassis | |
| Dimensions (W × D × H) | 17.5″W × 15.3″D × 2.7″H | |
| Weight (Without hard disks) | 17.6 lbs |
