Overview
Our technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

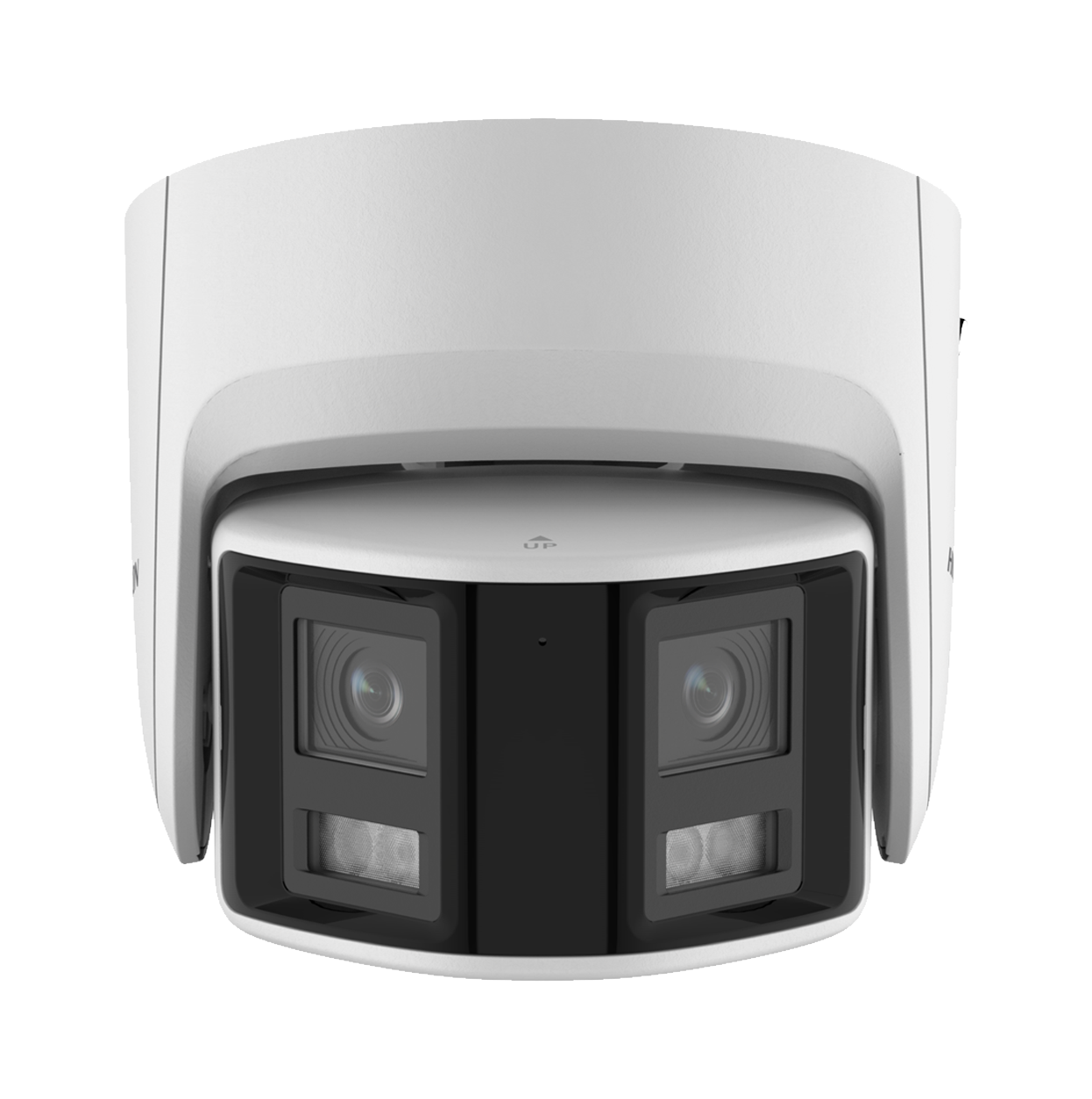

Platinum, 8 MP, Fixed Turret, Panoramic, 2x 1/1.8" Sensor, 2.8mm, Full Color, 130dB WDR, DC 12V/PoE
Features
- High quality imaging with 6 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
-
Water and dust resistant (IP67)
Specifications
| Camera |
| Image Sensor |
2 × 1/2.5" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Speed |
1/3 s to 1/100, 000 s |
| Slow Shutter |
Yes |
| Wide Dynamic Range |
130 dB |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: -30° to 30°, tilt: -75° to 75° |
| Lens |
| Focal Length & FOV |
Horizontal FOV: 180° ± 10° |
| Lens Mount |
M12 |
| Focus |
Fixed, Dual Lens: 2.8 MM |
| Aperture |
F1.0 |
| Illuminator |
| Supplement Light Type |
White light |
| IR Range |
Up to 98ft(30 m) |
| Video |
| Max. Resolution |
3632 × 1632 |
| Main Stream |
When WDR is on: 50 Hz: 20 fps (3632 × 1632), 60Hz: 20 fps (3632 x 1632)
|
| Sub-Stream |
When WDR is on: 50 Hz: 20 fps (1200 x 536, 960 x 432), 60Hz: (1200 x 536, 960 x 432)
|
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
|
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| H.264+ |
Main stream supports |
| H.265+ |
Main stream supports |
| Region of Interest (ROI) |
1 fixed region(s) for main stream |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host |
Up to 32 users. 3 levels: administrator, operator and user |
| Network Storage |
NAS (NFS, SMB/CIFS), ANR, NVR |
| Web Browser |
Plug-in required live view: IE 10, IE 11 , Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch |
Auto, Schedule, Day, Night |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB |
| Built-in Microphone |
Yes |
| Hardware Reset |
Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception |
| General |
| Linkage Method |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing |
| Camera Material |
Base: metal, cover: metal |
| Camera Dimension |
Ø 140 mm × 145.6 mm (Ø 5.5" × 5.7") |
| Package Dimension |
230 mm × 230 mm × 230 mm (9" × 9" × 9") |
| Camera Weight |
Approx. 920 g (2.0 lb.) |
| With Package Weight |
Approx. 1680 g (3.7 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Power Consumption and Current |
12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
|
| Power Supply |
12 VDC ± 25%, 0.79 A, max. 9.5 W, Ø 5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W |
| Power Interface |
Ø 5.5 mm coaxial power plug |
| Approval |
| EMC |
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Safety |
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529-2013) |
|
